料號 1002 4425 |
Part No. 1002 4425 |
||
? |
? |
||
應用 |
鉆, 銑, 磨, 雕刻機床 |
Applications |
Drilling, Milling, Grinding, Engraving |

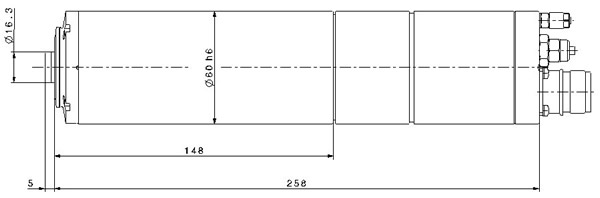

外殼夾裝尺寸 |
60 mm |
Clamping diameter |
60 mm |
馬達類型 |
無刷同步高速電機 |
Motor system |
Brushless DC motor (BLDC) |

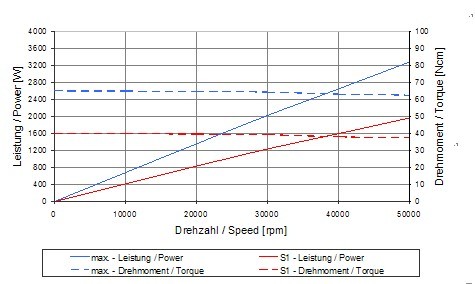

轉速范圍 |
2,000 – 50,000 min-1 |
Speed range |
2,000 - 50,000 rpm |
額定電壓 |
230 V |
Voltage |
230 V |
電流 |
最大 12 A |
Current |
max. 12 A |
扭矩t |
最大 65 Ncm |
Torque |
max. 65 Ncm |
頻率 |
33 - 833 Hz |
Frequency |
33 - 833 Hz |
功率 |
最大 3,300 W |
Output power |
max. 3,300 W |
重量 |
3.5 kg |
Weight |
3.5 kg |
軸承 |
3 x 陶瓷軸承, 油脂潤滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
保護等級 |
IP 54 |
Protection category |
IP 54 |
電機保護 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
安裝位置 |
|
Working position |
|
負載方向 |
軸向 + 徑向 |
Load direction |
axial + radial |
錐面跳動 |
通常 1 μm |
Run-out (taper) |
typ. 1 μm |
刀具夾持范圍 |
錐柄: 11.5° ? 2,35 - 8,0 mm (包括. 1/8 + 1/4") |
Chuck clamping range |
Taper tool holder: 11.5° |
換刀方式 |
壓縮氣 5 - 6 bar |
Tool change |
pneumatical 5 - 6 bar |
冷卻系統(tǒng) |
外夾具冷卻 |
Cooling system |
Cooling via clamping bracket |
防水防塵措施 |
壓縮氣 0.5 – 0.8 bar |
Protected against dirt |
Sealing air 0.5 - 0.8 bar |
外殼材料 |
不銹鋼 |
Housing material |
Stainless steel |
推薦變頻器 |
e@syDrive? 4438, TV 4538 |
Inverter recommendation |
e@syDrive? 4438, TV 4538 |
? |
保留修改權 |
? |
Subject to change without notice |
