料號 1002 3669 |
Part No. 1002 3669 |
|||
應用 |
鉆, 銑, 磨, 雕刻機床 |
Applications |
Drilling, Milling, Grinding, Engraving |
|

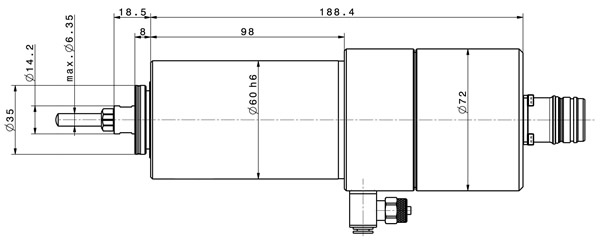

外殼夾裝尺寸 |
60 mm |
Clamping diameter |
60 mm |
|
馬達類型 |
無刷同步高速電機 |
Motor system |
Brushless DC motor (BLDC) |
|
轉速范圍 |
2,000 – 25,000 min-1 |
Speed range |
2,000 - 25,000 rpm |
|
額定電壓 |
230 V |
Voltage |
230 V |
|
電流 |
最大 12 A |
Current |
max. 12 A |
|
扭矩t |
最大 130 Ncm |
Torque |
max. 130 Ncm |
|
頻率 |
33 - 417 Hz |
Frequency |
33 - 417 Hz |
|

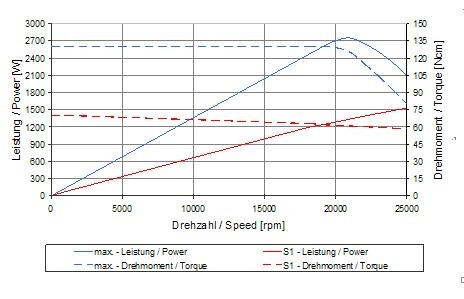

功率 |
最大 2,800 W |
Output power |
max. 2,800 W |
|
重量 |
3.3 kg |
Weight |
3.3 kg |
|
軸承 |
3 x 鋼球軸承, 油脂潤滑 |
Bearing system |
3 x Steel, lifetime lubrication |
|
保護等級 |
IP 54 |
Protection category |
IP 54 |
|
電機保護 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
|
安裝位置 |
|
Working position |
|
|
負載方向 |
軸向 + 徑向 |
Load direction |
axial + radial |
|
錐面跳動 |
通常 1 μm |
Run-out (taper) |
typ. 1 μm |
|
刀具夾持范圍 |
? 1.0 – 6.35 mm (包括 1/8 + 1/4") |
Chuck clamping range |
? 1.0 - 6.35 mm (incl. 1/8 + 1/4") |
|
換刀方式 |
2 開口扳手 (SW 13 + 10) |
Tool change |
2 open-end wrenches (13 + 10 mm) |
|
冷卻系統 |
外夾具冷卻 |
Cooling system |
Cooling via clamping bracket |
|
防水防塵措施 |
壓縮氣 0.5 – 0.8 bar (管徑 ? 內/外4/6 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar (hose ? inner/outer 4/6 mm) |
|
外殼材料 |
不銹鋼 |
Housing material |
Stainless steel |
|
推薦變頻器 |
e@syDrive? 4438, TV 4538 |
Inverter recommendation |
e@syDrive? 4438, TV 4538 |
|
? |
保留修改權 |
? |
Subject to change without notice |
|
