| 料號 0674 0830 | Part No. 0674 0830 | ||
| 應用 | 鉆削機床 | Applications |
Drilling |

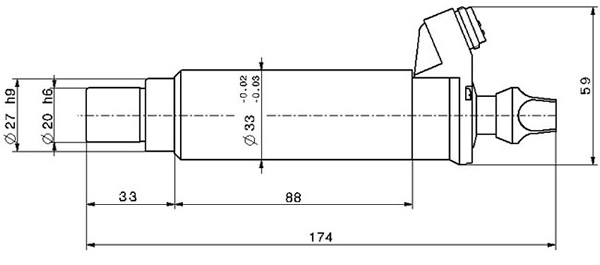

外殼夾裝尺寸 |
33 mm |
Clamping diameter | 33 mm |
| 馬達類型 | 3相異步高速電機 | Motor system | 3 Phase asynchronous motor |
轉速范圍 |
5,000 – 60,000轉/分 |
Speed range |
5,000 - 60,000 rpm |
額定電壓 |
30 V |
Voltage |
30 V |
電流 |
最大 8 A |
Current |
max. 8 A |
扭矩 |
最大 4.5 Ncm |
Torque |
max. 4.5 Ncm |
頻率 |
83 – 1,000 Hz |
Frequency |
83 - 1,000 Hz |
功率 |
最大 250 W |
Output power |
max. 250 W |
重量 |
0.6 kg |
Weight |
0.6 kg |
軸承 |
2 x 鋼球軸承, 油脂潤滑nsdauergeschmiert |
Bearing system |
2 x Steel, lifetime lubrication |
防護等級 |
IP 20 |
Protection category |
IP 20 |
電機保護 |
- |
Motor protection |
- |
安裝位置 |
|
Working position |
|
負載方向 |
軸向 |
Load direction |
axial |
錐面跳動 |
不超過 2 μm |
Run-out (taper) |
typ. 2 μm |
刀具夾持范圍 |
? 0.3 – 4.0 mm (包括 1/8") |
Chuck clamping range |
? 0.3 - 4.0 mm (incl. 1/8") |
換刀方式 |
旋鈕 |
Tool change |
Clamping knob |
冷卻系統 |
內置風扇*及外夾具冷卻 |
Cooling system |
Self-ventilation fan* Cooling via clamping bracket |
防水防塵措施 |
無 |
Protected against dirt |
No |
外殼材料 |
鋁合金 |
Housing material |
Aluminum |
推薦變頻器 |
e@syDrive? 4424*, 4425 |
Inverter recommendation |
e@syDrive? 4424*, 4425 |
*輸出功率有所降低 |
保留修改權 |
*reduced output power |
Subject to change without notice |
